Sub A225-M
Full range accurate Subwoofer
For those who want more than just “some bass”: the A225-M is the ideal addition to any PSI Audio monitoring system, granting the same trademark fidelity to the lowest frequencies – precision down to 24 Hz!
Main Features
Power
480W
Frequency Range
24Hz – 100Hz
Peak max. SPL@1m
115dB
Typical listening distance
from 1.5m
100% Analog – No DSP
Flat frequency response
Coherent to each monitor
R&B compatible
Class G/H Amplifiers
Individually calibrated
5+1 years warranty
Handmade in Switzerland
The perfect low end in your studio
Given enough power, going low with a speaker is not too much of a challenge. Reproducing low frequencies with precision, however, is a different matter entirely. The PSI Audio Sub A225-M brings a whole new dimension of accuracy to the low end.
PSI Audio has translated its general approach of unaltered, maximum fidelity reproduction to the bass spectrum, allowing for a riveting experience that will change the way you work. Taking the guesswork out of the bass management, the A225-M grants an accurate representation of what is really going on “down below”. Take control and create a sonic wonderland that reaches throughout the entire spectrum with no insecurities and no need to double-check your work on a different system. Get a subwoofer you can trust.
“The real trick is to simultaneously provide a pure neutral processed signal and bypass all the obstacles on the road to obtain it.
PSI Audio staff challenged laws of physics and mechanical constraints. Engineers from the company PSI Audio mastered this art.”
Estrada iStudio!, Poland
Add control on your surround setup or on low frequencies
If you use a surround system or are working with several different speakers, our R&B – Router & Bass management System – could save you a lot of time.
R&B is an 8 in / 8 out transparent matrix that will fit into A225-M and help you selecting the speakers you are working with.
Please note that R&B is an option for the Sub A225-M and is not included as standard.
A subwoofer for the whole range
The Sub A225-M is the perfect addition to any PSI Audio speaker setup. No matter if you are working with our compact A17-M or the large A25-M, the A225-M will seamlessly integrate with all our monitors. Simply engage the bass roll-off on the satellites and enjoy a full-range system that extends down to 24 Hz with all the linearity in frequency and phase that you are used to from our monitor speakers.
Sub A225-M Technical Data
| Data | A225-M | [Unit] |
|---|---|---|
| Potential peak power | 480 | W |
| Continuous max SPL@1 m | 108 | dB |
| Short term max. SPL@1m | 111 | dB |
| Peak max. SPL@1m | 115 | dB |
| Signal to noise ratio (S/N) | 102 | dBA |
| Bandwidth at -6dB | 24-100 | Hz |
| SPL tolerances | ±2.0 | dB |
| Phase tolerances | ± 45 (300 Hz – 500 Hz) | deg |
| System | 1 | ways |
| Woofer ext. diam. | 293 (2x) | mm |
| Woofer ext. diam. | 11.4 (x2) | in |
| W. diaphragm diam. | 213 (2x) | mm |
| W. diaphragm diam. | 8.3 (x2) | in |
| Dimensions W x H x D | 320 x 700 x 500 | mm |
| Dimensions W x H x D | 12.6 x 27.7 x 19.9 | in |
| Net Weight | 35.6 | Kg |
| Net Weight | 78.4 | lbs |
| Input connector | 2 x XLR F2 x XLR M | |
| Warranty | 5 (+1) | years |
Flat Response
Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.
Sub A225-M – Add low end to our whole range of studio monitors
The Sub A225-M is the perfect addition to any PSI Audio speaker setup. No matter if you are working with our compact A17-M or the large A25-M, the A225-M will seamlessly integrate with all our monitors. Simply engage the bass roll-off on the satellites and enjoy a full-range system that extends down to 24 Hz with all the linearity in frequency and phase that you are used to from our monitor speakers.
Sub A225-M – Who is it for?
Designed to complement our large three-way systems, the A225-M packs a lot of power to support full-range listening without compromise. It can also extend a smaller system, of course, or even mixed setups like in surround applications as the LFE. The A225-M is at home wherever low frequencies need to be monitored reliably, like in mixing, mastering and post-production.
Handmade in Switzerland
All our products are handcrafted in Switzerland with passion and attention to detail.
Manufacturing by hand allows to match and adjust components so that tolerances cancel each other out instead of building up, as is often the case in industrial production.
Choose your colour
Choose between Studio Red, Metal Black and Pure White.
Cabinets are manufactured with great care and attention from the choice of the wood all the way through to the paintwork.
Technical Data & Documents
What our users say

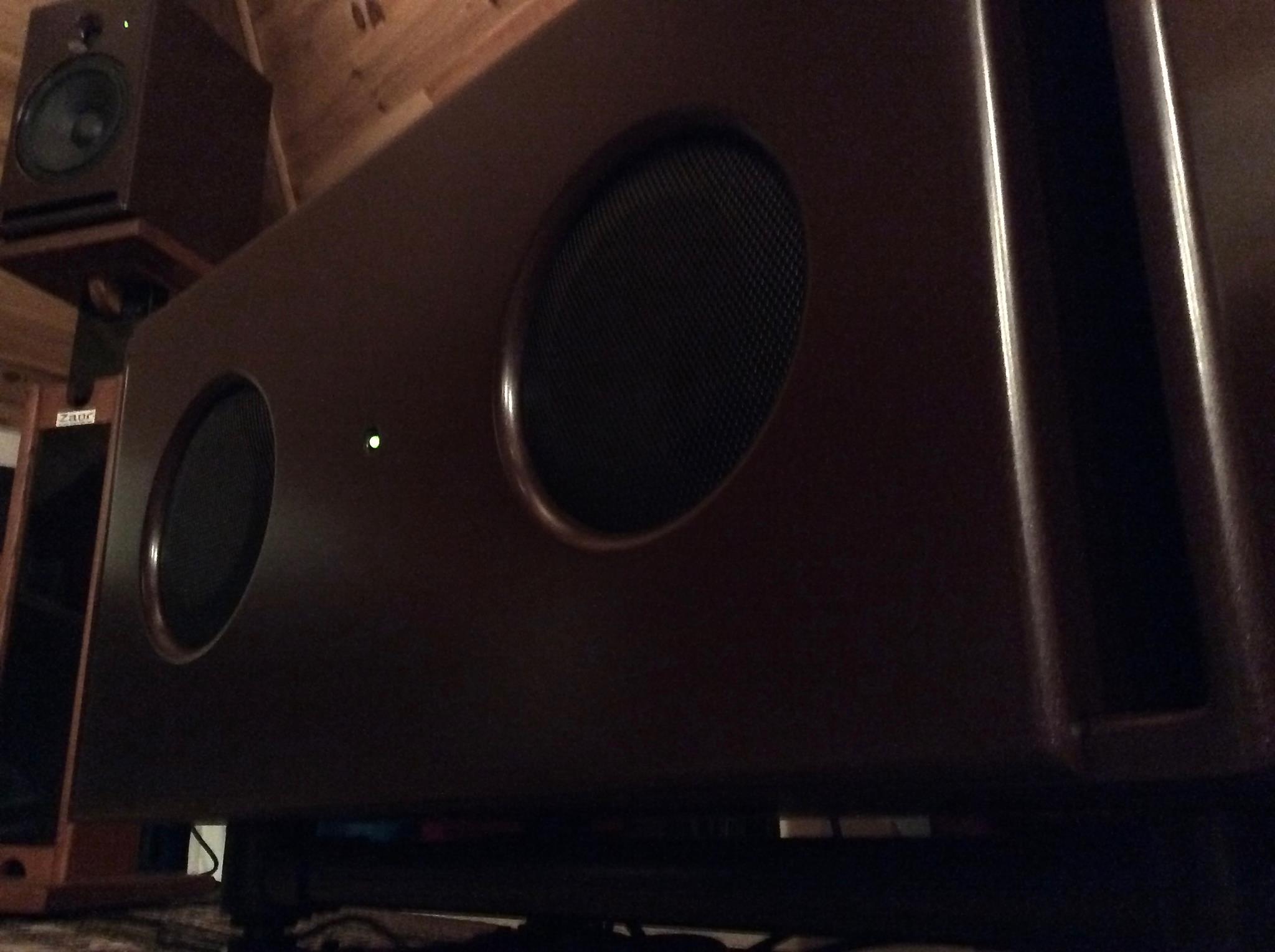

The Sub A225 brings a relief, a natural depth to the A21, thus making the decomposition of the plans that make up an incredibly intuitive mix.
Jean-Jacques Blondeau, Schizoid Sound Studio (www.schizoidsoundstudio.com)
