R&B – Router & Bass Management

The ultimate routing management for your speakers setup

Main Features

Full analog transparent system without internal channels mixing
Integrated into the subwoofer PSI Audio A225-M as an option
Optional display providing standby and preparation modes
True balanced outputs adapted for balanced or unbalanced inputs
Internal input gains adjustments
Compatible with any monitors brand

100% Analog – No DSP
individually calibrated
5+1 years warranty
Handmade in Switzerland

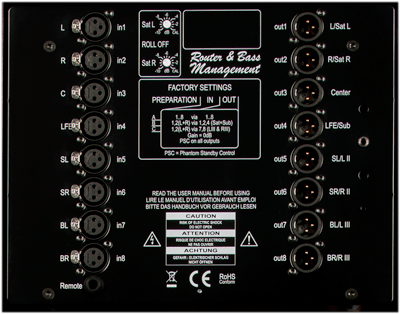

R&B is an 8 by 8 matrix that allows you 3 different configurations.

Wether you are using your PSI Audio setup in stereo or surround, R&B can save you a lot of time.

“PSI Audio R&B has made my life so easy, I don’t know how I ever did without it.”
Alex Wasem, Royal Studios

Technical Data & Documents

Product:R&B - Router & Bass Management
Input Impedance:8 x Sym, 10kOhms
Response:± 0.1dB (20Hz-20kHz)± 1 dB (5Hz-100kHz)
Signal to Noise Ratio:-96 dBu pond A
CMRR:> -55 dB (20Hz-20kHz)
Dynamic range:> 118 dBA
Interchannel isolation:> 84 dBA
Gain:Inputs 1..3,5..8 0dB intern. adj. -2..+12dBInputs 4 0/+10dB intern. adj. -2..+12dB
Max Output Level:28Vpp <0.001% THDIF PSC USED: 5V DC Phantom in standby
Input Overload:24 Vpp
Distortion THD:<0.001%
System:8 IN / 8 OUT
Connectors:IN/OUT XLR BalancedRemote Jack 6.35 3p
Signal input:1=GND, 2=(+), 3=(-)
Dimensions W x H x D mm:280 x 220 x 60
Gross / Net Weight:0.95 kg
Voltage:115/230V (50-60Hz)
Consumption Standby-Quiescent-Max:1.4 – 14 – 20 W
Mean / Max Humidity:< 75% / < 90%
External Temperature:5 – 40°C
Remote:Standard dual foot switch (ex: FS-202 Satgeline)
